RFID Tag

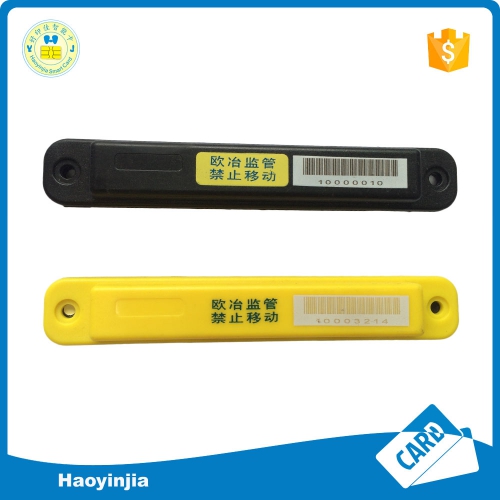

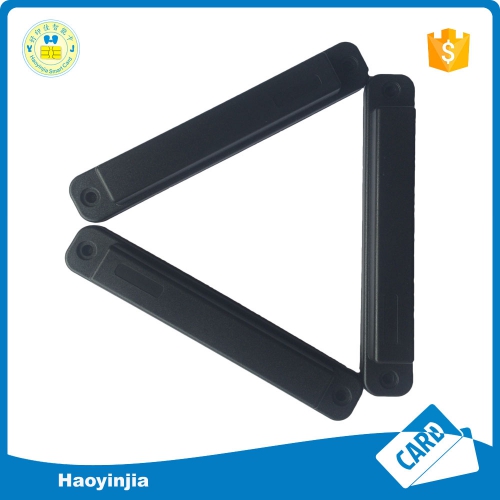

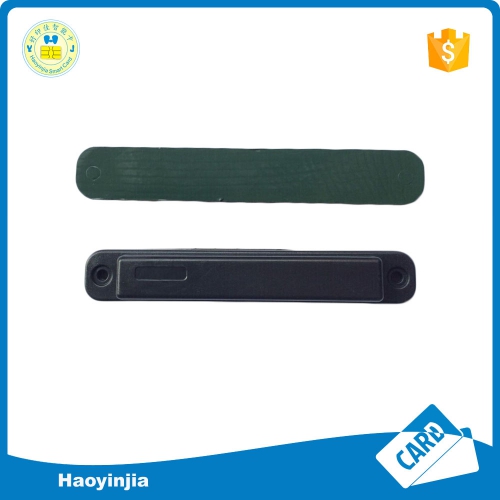

RFID Anti-Metal Tag for warehouse management

Chip type: Aline H3/H4 and so on
Working frequency: 860-960MHz
Protocol standard: ISO18000-6C, EPC-Gen2
The number of read and write more than 1000000 times
Size (customizable): 134*21.5*12.5mm
Material: ABS

  • Product overview:
    It adopts ABS injection molding package, moisture-proof and waterproof. It is suitable for asset management, manhole cover management and mold management.

    Product features:
    General label, working frequency 860~960MHz
    Compliance with the EPC Class1 Gen2 technical specification
    Working on the metal surface

    Product application:
    It can be encapsulated into different color metal sticky labels according to customers‘ requirements.
    It can be used for logistics, warehousing and asset management. It can be used for power inspection and urban sand well cover management.

    Product parameters:
    Chip type: Aline H3/H4 and so on
    Working frequency: 860-960MHz
    Protocol standard: ISO18000-6C, EPC-Gen2
    The number of read and write more than 1000000 times
    Size (customizable): 134*21.5*12.5mm
    Material: ABS
    Color (customizable): black
    Chemical resistance: meets IP67 standards, waterproof, sunscreen Anti static, prevent static breakdown, withstand voltage 5000V or more.
    Working temperature: -20 C - 75 C
    Storage temperature: -40 C - 90 C
    The working life is more than 10 years
    Installation of paste or screws fixed
    The maximum reading distance: 6M (ultra high frequency)
    The weight is 15 + 0.1g
